Pay-off units

Reference — Create and maintain pay-off units of the series AB, ABS, ABST and ABA: drum dimensions, load capacity, drum lift, unwinding tension, accessories and documents.

What you use this area for

Under Master data > Pay-off units you create the pay-off units of your plant. A pay-off unit feeds material such as core, rope or cable from a drum into the following machine — for example the core that is overbraided in a braiding machine. In the Machine Fleet, pay-off units have their own filter.

New in version 2.1.0

Pay-off units are a separate machine kind. The list and dialog are structured like those of the take-up units.

The screen at a glance

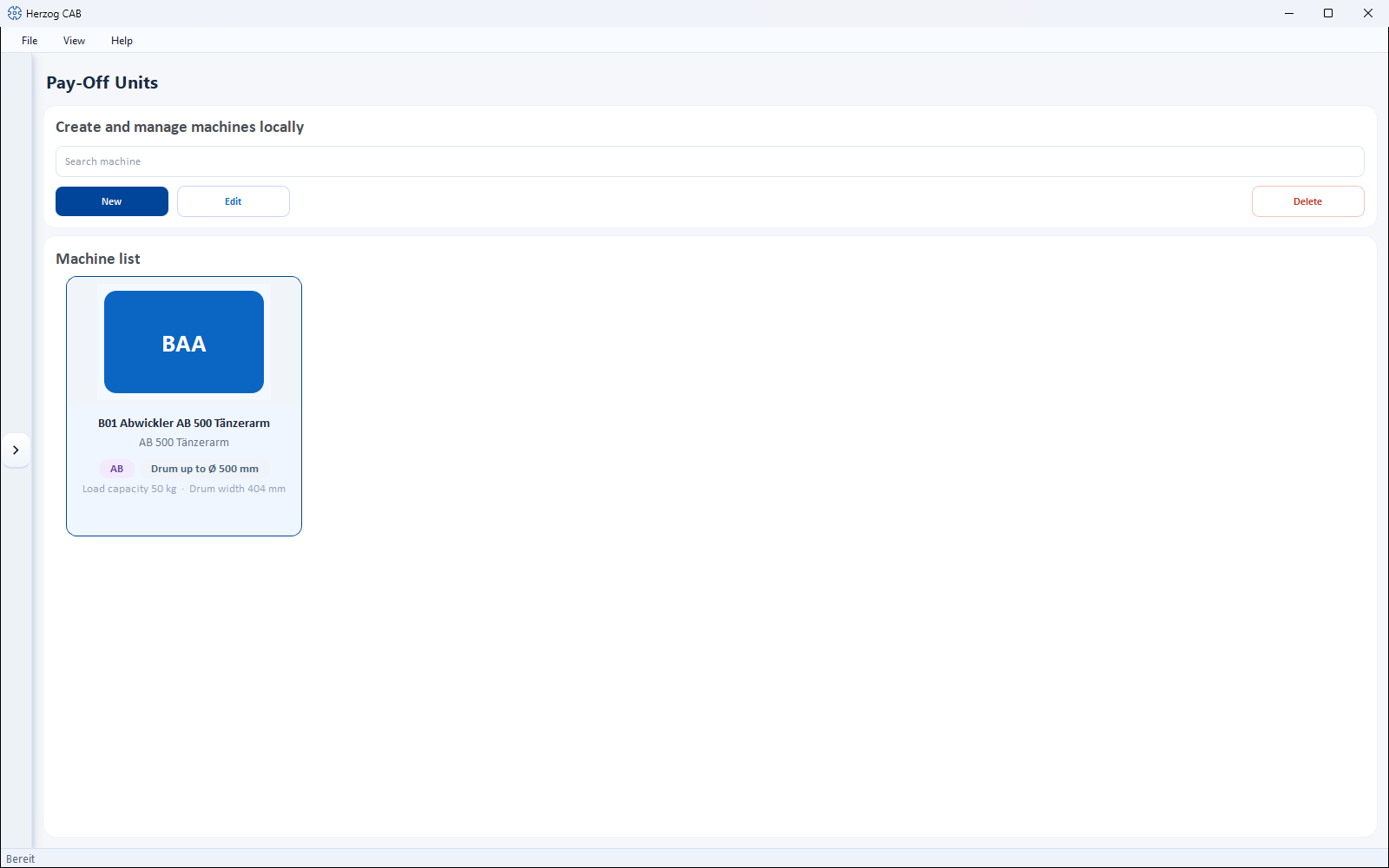

Pay-off unit page with search field, New, Edit, Delete and a pay-off unit card in the machine list

At the top is a toolbar, below it the Machine list as cards. Each card shows image, series (without series: Pay-off units), Drum up to Ø … mm as well as Load capacity … kg and Drum width … mm, if stored.

Toolbar (Search machine, New, Edit, Delete), double-click and context menu (Open, Edit, Duplicate, Delete) work as for the take-up units. The quickest way to create Herzog pay-off units is via the Herzog catalogue (tab Pay-off units).

The "Create new pay-off unit" dialog

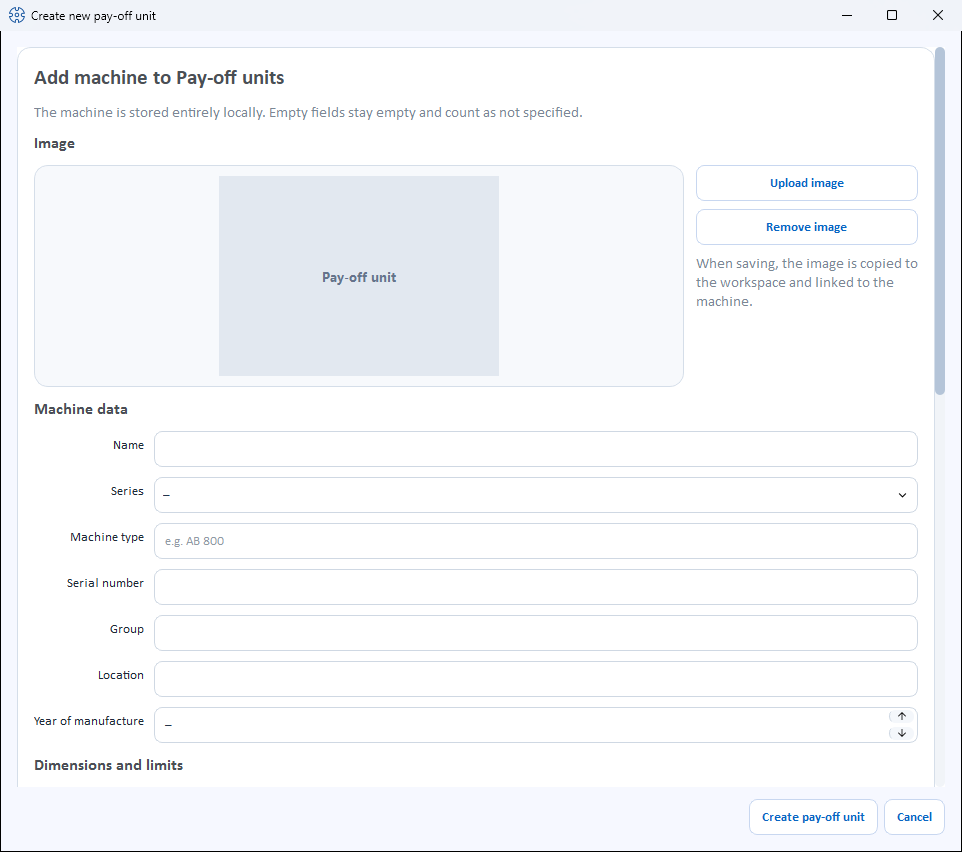

The “Create new pay-off unit” dialog with image and Machine data section

The dialog is divided into sections from top to bottom. Empty fields remain empty and count as not stored.


  • Upload image – selects a machine image from the Media library.
  • Use catalogue image – appears only as long as the pay-off unit has no image of its own and its Machine type matches a model from the Herzog catalogue (internet connection required).
  • Remove image – removes the image again.

Machine data

Field Meaning
Name Display name of the machine. Required field.
Series One of the series (see below) or –.
Machine type Type designation, e.g. AB 800. If the field is left empty, the series is saved as the machine type.
Serial number Serial number of the machine.
Group Freely assignable grouping.
Location Hall/plant/department.
Year of manufacture Year of manufacture (or –).

Dimensions and limits

Field Unit Meaning
Drum diameter (min–max) mm Smallest and largest drum diameter that the pay-off unit accepts.
Max. drum width mm Largest drum width.
Load capacity kg Total weight of the loaded drum: drum plus wound material.
Quill diameter mm Diameter of the quill. It is adapted to the respective drum and does not decide whether a drum fits.
Material diameter (min–max) mm Diameter of the material that runs off the pay-off unit, e.g. core or rope (one decimal place).

Design

Field Meaning
Drum lift no lift, hand crank, electric, pneumatic or hydraulic (or –).
Unwinding tension Checkboxes Brake, Dancer arm, Pulley dancer — several possible at once. No checkbox set means: without brake.
Drive Checkbox motor-driven.
Drum Checkbox traversing.

Accessories and documents

Accessories as checkboxes (catalogue suggestions and own accessories) and Documents (categories Operating manual, Data sheet, Maintenance, Spare parts, Other) work as for the take-up units.

Save

At the bottom, you complete the dialog with Create pay-off unit or discard it with Cancel. When editing, the button is called Save. Without a name, Please enter a name. appears; if, for drum diameter or material diameter, the lower value is greater than the upper one, the dialog reports "…: the lower value is greater than the upper one."

The series

Series Designation
AB Pay-off unit
ABS Pay-off unit with hydraulic drum lift
ABST Pay-off unit with traversing drum
ABA Driven pay-off unit
